ORE User Guide - Primer

2 April 2008


This document was part of an alpha release and has been superseded.

This version:
Latest version:
Previous version:
Editors (OAI Executive)
Carl Lagoze, Cornell University Information Science
Herbert Van de Sompel, Los Alamos National Laboratory
Editors (ORE Technical Committee)
Pete Johnston, Eduserv Foundation
Michael Nelson, Old Dominion University
Robert Sanderson, University of Liverpool
Simeon Warner, Cornell University Information Science


Open Archives Initiative Object Reuse and Exchange (OAI-ORE) defines standards for the description and exchange of aggregations of Web resources. This document provides a brief overview of the abstract data model underlying these standards, serializations, implementation with HTTP, and discovery. This user guide is one of several documents comprising the OAI-ORE specification and user guide. It is intended as the place to start for first time readers.

Table of Contents

1. Introduction
2. Foundations
    2.1 Web Architecture
    2.2 Semantic Web and RDF
    2.3 Named Graphs
    2.4 Namespaces and Vocabularies
3. Data Model
    3.1 Aggregation
    3.2 Resource Map
    3.3 Relationships to other Aggregations
4. Serialization
5. HTTP implementation
6. Discovery
7. References


A. Acknowledgements
B. Change Log

1. Introduction

The ORE Model makes it possible to associate an identity with aggregations of web resources and to describe their structure and semantics. It does this by introducing the Resource Map (ReM), which is a resource identified by a URI (say ReM-1) that encapsulates a set of RDF statements. These statements instantiate an aggregation as a resource with a URI, enumerate the constituents of the aggregation, the relationships among those constituents, and the Web context of the aggregation. The ORE Model can be serialized in a variety of formats which will be described, along with mappings of ORE Model concepts, in companion ORE documents. The primary serialization is Atom [ORE Atom User Guide, ORE Atom Profile]. Direct RDF serialization is described in [Representing Resource Maps Using RDF Syntaxes].

2. Foundations

2.1 Web Architecture

A full description of Web Architecture concepts is contained in [Web Architecture]. For the remainder of this document, the use of the following terms from the Web Architecture SHOULD be interpreted as briefly summarized below:

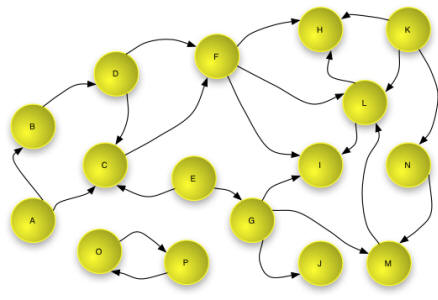

The combination of these concepts forms what is commonly referred to as the Web Graph, with nodes that are URIs (which identify Resources), from which Representations are made available, and edges that are Links. An example of a Web graph is shown below. Note that this example shows that the Web graph is not necessarily connected - nodes O and P link to each other but not to other nodes in the graph.

Depiction of general web graph

2.2 Semantic Web and RDF

This specification also leverages Semantic Web concepts from RDF [RDF Concepts]. In RDF, Resources are described using sets of triples, each made up of three parts: a subject, a predicate and an object. The subject is a URI that identifies the described Resource; the object is either the URI of a second Resource or a literal that identifies values such as numbers and dates by means of a lexical representation; and the Predicate is a URI that identifies a type of relationship. Each triple states that a relationship of the type indicated by the Predicate (a URI) holds between the Resource identified by the subject (a URI) and the object (a URI or a Literal).

A set of RDF triples is referred to as an RDF Graph because it can be represented as a node and directed-arc diagram, in which each triple is represented as a node-arc-node link. The nodes of an RDF Graph are the subjects and objects of the constituent triples. In an RDF Graph each node is connected to at least one other node in the graph.

Note: this is a slight simplification of the RDF model because it ignores the concept of "blank nodes". The ORE model does not make use of "blank nodes" and they are not discussed further in this document

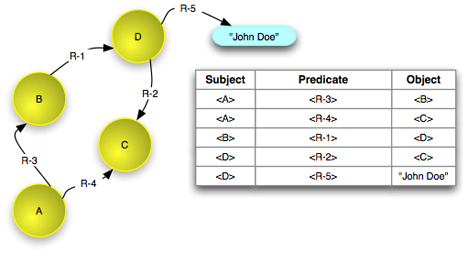

An example of an RDF Graph is shown in the figure below. As shown, the subject and Predicate of a triple are always URIs (the URI is indicated by the text in the yellow circle and shown with bracketed syntax <A> in the table) and the object may be a URI or a literal (shown as a blue rounded rectangle in the graph and in quotations in the table).

Example RDF graph and triples

Example triples in this document are show in Notation3 [N3] format, e.g.

<URI-1>  rdf:type    <T-1>.
<URI-1>  dc:creator  "Joe Bloggs".

Which means that resource URI-1 has type denoted with the URI T-1, and was created by Joe Bloggs.

A number of examples in this document are shown in N3. As this is now the primer then it would be better to recast all snippets as pictures with tables of triples where necessary (in the manner of the Data Model but with these simpler cases).

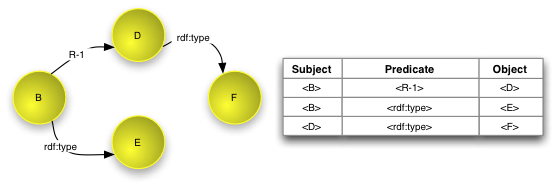

Another tool from the Semantic Web, the RDF Vocabulary Description Language [RDFS], provides the mechanisms to define vocabularies for defining the types of these relationships.  In combination with the RDF-defined relationship rdf:type this vocabulary makes it possible to express types for Resources. The figure below shows an example of this.  As shown, the objects of the triples with rdf:type Predicates are URIs, that denote classes or types.

Use of rdf:type

2.3 Named Graphs

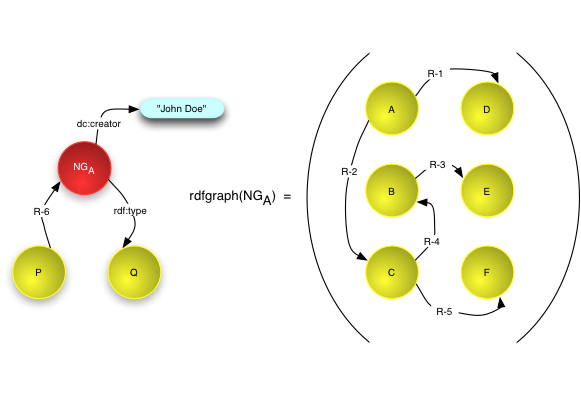

Finally, this specification builds on the notion of a Named Graph [Named Graph], which extends RDF to allow the association of a name - a URI - with a set of triples - a graph. A number of aspects of Named Graphs are shown in the figure below.

Named Graph

2.4 Namespaces and Vocabularies

The ORE Model uses predicates from a number of vocabularies including one specific to ORE which is descibed in the ORE Vocabulary specification. In these specifications we use the following namespace prefixes.

Prefix Namespace URI Description
dc Dublin Core elements
dcterms Dublin Core terms
ore ORE vocabulary terms
owl OWL vocabulary terms
rdf RDF vocabulary terms

3. Data Model

3.1 Aggregation

A Resource Map describes an Aggregation which is a set of resources, and possibly their types and relationships among the resources. Resources in the Aggregation are called Aggregated Resources.

In order to be able to talk about the Aggregation on the web, it must have a URI (say A-1). The ORE Model requires that a Resource Map describe just on Aggregation. There may be multiple Resource Maps in different formats that describe the same Aggregation. In order that applications and clients can reference the Aggregation in an actionable fashion, the URI A-1 must yield or lead to a the Resource Map when derefenced. This is likely to be achieved in on of two ways:

  1. The URI of the Aggregation A-1 may be constructed by appending a fragment identifier #aggregation to the Resource Map URI ReM-1. For example, the Resource Map available from the URI might describe the Aggregation This syntactic trick allows the creation of an Aggregation URI A-1 that correctly yeilds the corresponding Resource Map without the need for an additional infrastructure beyond a web server to return the Resource Map from URI ReM-1.
  2. In applications where there is more control over the web infrastructure or it is desirable to serve Resource Maps in multiple formats, content negotiation or 303-style redirection may be used to link the Aggregation URI A-1 to the Resource Map. This is described in detail in FIXME_WHERE_IS_THIS_DESCRIBED, an example would be A-1 which yields or depending on content negotiation for Atom or RDF/XML serializations.

3.2 Resource Map

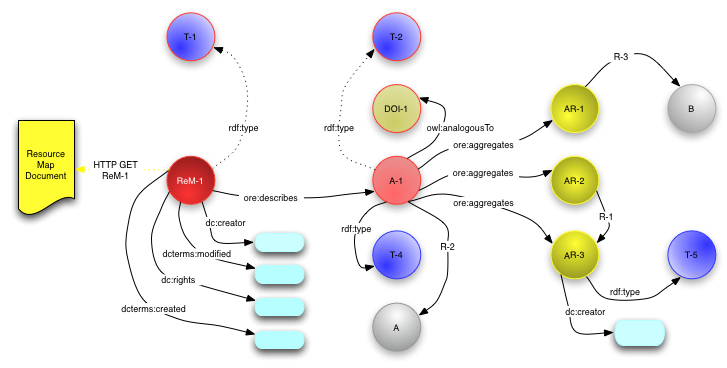

A Resource Map is obtained as a representation of the resource identified by the protocol-based URI ReM-1. The following figure shows a complete Resource Map with statements indicated as arrows from subject resource to object resource or literal. The remainder of this section explains the components of this graph step-by-step.

A complete Resource Map

The figure must be updated to use the ore:similarTo predicate instead of owl:analogousTo.

The Resource Map is identified by ReM-1 and an HTTP GET on ReM-1 must yield a serialization of the Resource Map. Note also that ReM-1 appears as a node in the figure and is the subject of several triples. First, there must be triples providing the type of the Resource Map, the type of the Aggregation, and linking the Resource Map to the Aggregation that it describes:

# mandatory, ReM-1 is a Resource Map (shown as T-1)
<ReM-1>  rdf:type            ore:ResourceMap.

# mandatory, A-1 in an Aggregation (shown as T-2)
<A-1>    rdf:type            ore:Aggregation.

# mandatory, ReM-1 describes A-1
<ReM-1>  ore:describes       <A-1>.

Some metadata about the Resource Map is mandatory, and additional metadata may optionally be expressed:

# mandatory: authoring authority and modification time of ReM
<ReM-1>  dc:creator          <>.
<ReM-1>  dcterms:modified    "2007-10-15T00:00:00Z".

# optional: rights pertaining to and original creation time of ReM
<ReM-1>  dc:rights           <>.
<ReM-1>  dcterms:created     "2007-10-15T00:00:00Z".

If the Aggregation denotes an information object that has other identifiers then these are expressed using the ore:similarTo predicate:

<A-1>    ore:similarTo       <DOI-1>.

For the particular case where the ORE Aggregation is also identified by another URI then the owl:sameAs predicate my be used.

All of the Aggregated Resources are linked to the Aggregation with the ore:aggregates predicate:

<A-1>    ore:aggregates      <AR-1>.
<A-1>    ore:aggregates      <AR-2>.
<A-1>    ore:aggregates      <AR-3>.

Thus far, the Aggregation is just a bag of resources, AR-1, AR-2, and AR-3, unrelated except for their status as constituents of the Aggregation. A Resource Map may also describe the structure of the Aggregation by expressing internal relationships between the Aggregation and/or Aggregated Resources, for example:

# shown as R-1
<AR-2>   dc:hasFormat        <AR-3>.

Finally, the Resource Map may include two types of external relationships: 1) Semantic types may be associated with either the Aggregation and/or the Aggregeted Resources using the rdf:type predicate. 2) The context of the Aggregation among other other resources may be expressed using predicates in any vocabulary provided either the subject or object is the Aggregation or and Aggregated Resource.

# A-1 has type T-4 (journal article perhaps) and is part of resource A
<A-1>    rdf:type            <T-4>.
<A-1>    dcterms:isPartOf    <A>.

# AR-1 references B (perhaps another article) and has type Text
<AR-1>   dcterms:references  <B>.
<AR-3>   rdf:type            <>.

3.3 Relationships to other Aggregations

When reusing Resource Maps and the Aggregations that they descibe, it is important to remember the distinction between these two concepts. Statements about ReM-1 are statements about the Resource Map and not the Aggregation; statements about A-1 are statements about the intellectual object that is the Aggregation.

An Aggregated Resource may be aggregated in more than one Aggregation (say A-1 and A-2). The predicate ore:isAggregatedBy is the inverse of ore:aggregates and allows membership in another Aggregation to be expressed.

# Creator of ReM-1 knows AR-1 aggregated by A-2 as well as A-1
<AR-1>   ore:isAggregatedBy  <A-2>.

It is expected that a Resource Map describing the Aggregation A-2 can be obtained when A-2 is dereferenced.

A second use of ore:isAggregatedBy is to indicate nesting, where one Aggregation an Aggregated Resource in another Aggregation. Image that A-1 is a journal article which is part of a journal issue (Aggregation A-3). This context can be expressed in ReM-1 with the following triple.

# ReM-1 indicates that aggregation A-1 is aggregated by A-3
<A-1>    ore:isAggregatedBy  <A-3>.

4. Serialization

Need to write serialization section of primer.

5. HTTP implementation

Need to write HTTP implementation section of primer.

6. Discovery

Need to write discovery section of primer.

7. References

[ORE Data Model]
ORE Specification - Abstract Data Model, Carl Lagoze, Herbert Van de Sompel, Pete Johnston, Michael Nelson, Robert Sanderson, Simeon Warner (editors), 2008-02-26. Available at
[ORE Atom User Guide]
ORE User Guide - Resource Map Implementation in Atom, Carl Lagoze, Herbert Van de Sompel, Pete Johnston, Michael Nelson, Robert Sanderson, Simeon Warner (editors), 2008-02-29. Available at
[ORE Atom Profile]
ORE Specification - Resource Map Profile of Atom, Carl Lagoze, Herbert Van de Sompel, Pete Johnston, Michael Nelson, Robert Sanderson, Simeon Warner (editors), 2008-02-28. Available at
[Representing Resource Maps Using RDF Syntaxes]
ORE User Guide - Representing Resource Maps Using RDF Syntaxes, Carl Lagoze, Herbert Van de Sompel, Pete Johnston, Michael Nelson, Robert Sanderson, Simeon Warner (editors), 2008-02-29. Available at
[Web Architecture]
Architecture of the World Wide Web, Volume One, I. Jacobs and N. Walsh, Editors, World Wide Web Consortium, 15 January 2004.

A. Acknowledgements

This document is the work of the Open Archives Initiative. Funding for Open Archives Initiative Object Reuse and Exchange is provided by the Andrew W. Mellon Foundation, Microsoft, and the National Science Foundation.  Additional support is provided by the Coalition for Networked Information.

This document is based on meetings of the OAI-ORE Technical Committee (ORE-TC), with participation from the OAI-ORE Liaison Group (ORE-LG).  Members of the ORE-TC are: Chris Bizer (Freie Universität Berlin), Les Carr (University of Southampton), Tim DiLauro (Johns Hopkins University), Leigh Dodds (Ingenta), David Fulker (UCAR), Tony Hammond (Nature Publishing Group), Pete Johnston (Eduserv Foundation), Richard Jones (Imperial College), Peter Murray (OhioLINK), Michael Nelson (Old Dominion University), Ray Plante (NCSA and National Virtual Observatory), Rob Sanderson (University of Liverpool), Simeon Warner (Cornell University), and Jeff Young (OCLC).  Members of ORE-LG are: Leonardo Candela (DRIVER), Tim Cole (DLF Aquifer and UIUC Library), Julie Allinson (JISC), Jane Hunter (DEST), Savas Parastatidis  (Microsoft), Sandy Payette (Fedora Commons), Thomas Place (DARE and University of Tilburg), Andy Powell (DCMI), and Robert Tansley (Google, Inc. and DSpace)

We also acknowledge comments from the OAI-ORE Advisory Committee (ORE-AC).

B. Change Log

Date Editor Description
2008-04-02 simeon public alpha 0.3 release
2008-03-02 simeon public alpha 0.2 release
2008-01-08 simeon correct N3 example
2007-12-10 simeon public alpha 0.1 release
2007-10-15 simeon alpha release to ORE-TC
